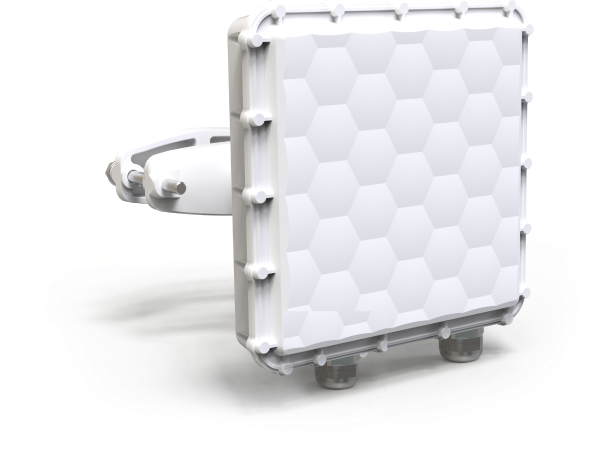

DLB AX CPE is a point to multipoint system and a globally new entry to the wireless market. It can deliver outstanding 1.200+ Mbps throughput capacity. Carrier grade design, extremely simple setup and maintenance make the product ideal for high capacity and high performance demanding deployments in any conditions.

Incredible performance

LigoPTMP series point to multipoint system delivers 600+ Mbps throughput via its unique and powerful RF design that supports up to 256QAM modulation and 30 dBm output power. 720 MHz dedicated CPU ensures swift data processing and high packet per second rate (PPS) which is important for real time data transmission applications. Gigabit Ethernet port supporting 802.3af/at standard allows powering the devices with PoE switches. Weatherproof IP-67 standard rated enclosure design allows using the equipment in any climate conditions.

1200
Wilibox OS

Wilibox OS

Wilibox access points have an integrated mobile device detection feature. Any device within range can be logged with MAC address and date / time without any user interaction. The data is exported in real time and can be used to enhance the services of enterprise or managed service providers by importing it to their own application. An API is available upon request. There are several technology partners already using the functionality including Cloud4Wi and Socifi.

Easy pre-configuration and maintenance

setup wizard

Setup Wizard

Guides the installer through the important steps of the set-up process.

Single side configuration

Single side configuration

Link parameters are automatically applied to subscriber units once set on the base-station side.

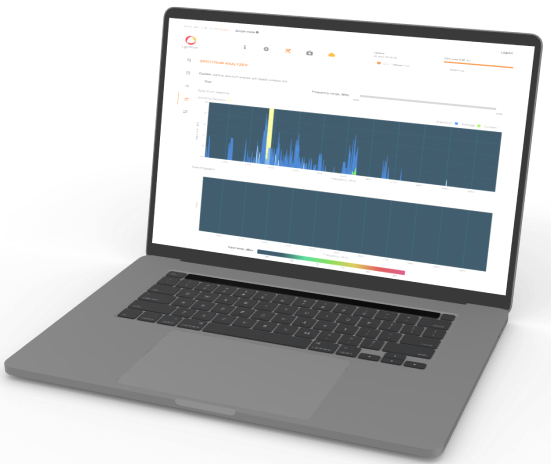

Spectrum analyzer

Spectrum analyzer

Demonstrates the current noise floor in a waveform and waterfall graphs.

Axora Controller: 3 Ways to Manage Your Network

laptop
Standalone

Standalone

Each device is configured via the user interface individually. This method is suitable for small networks not requiring centralized management and monitoring.

Integrated Controller

Integrated Controller

The master access point manages and monitors other devices on the same network. This controller-less architecture is suitable for small to medium size networks with up to 50 devices.

External Controller

External Controller

A local or cloud-based controller is used to manage and monitor the devices allowing deployment of large scale networks and management using a single system.

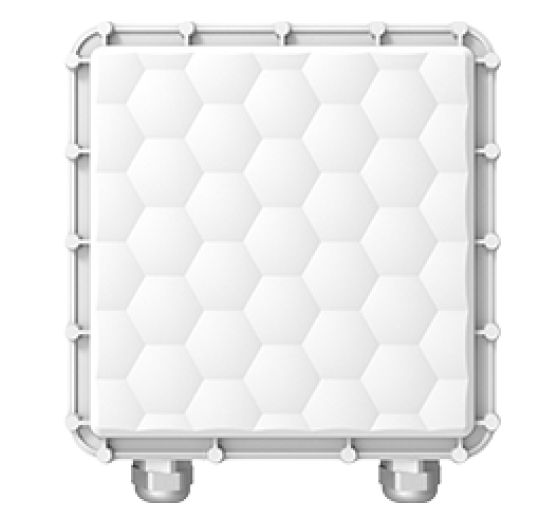

Outdoor AX

Outdoor AX

  • New designs – metal & plastic pats, new enclosure with 2XPoE (PoE out)
  • Qualcomm Cypress, RAM DDR3 512 MB, FLASH 128 MB (NAND)/ 64 MB (NOR)
  • 5Ghz (optional 6Ghz) 2x2 MU MIMO, QAM1024, channels: (5/10)/ 20/40/80Mhz
  • Radio output power up to 28dBm
  • Data-rate throughput up to 1.200 Mbps (PHY)
  • Internal antennas Same as DLB5-15AC, DLB5-20AC
  • Software new UX, VPN client
  • Small footprint PCB (similar to FWBD3200-DLB5-15AC, DLB5-20AC)
Distance recommendations (max):
  • PTP mode: 7 km (4.35 mi)
  • PTMP mode: 5 km (3.11 mi)
Interfaces:
  • Ethernet ports Options two 2.5Gbps (POE active) or one 2.5Gbps (POE active or passive)
