Indoor AP AC

Indoor AP AC

In production

Small form factor, dual-radio access point equipped with two 2x2 MIMO 802.11ac radios operating in the 2.4 and 5 GHz bands concurrently and reaching 1.167 Gbps data rate

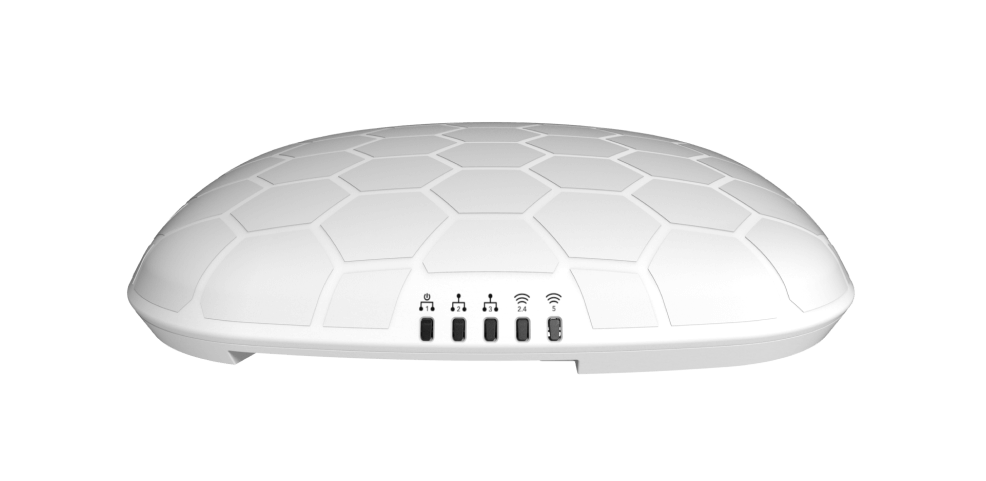

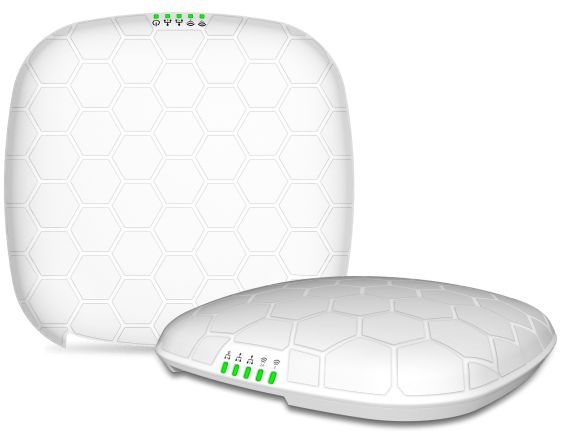

Dual-Band, Dual-Radio 802.11ac Indoor Access Point

The NFT 2ac is a WI-FI access point based on 802.11ac technology with an integrated 2.4 and 5GHz (2×2) MiMo radios with 27dBm output power. The gigabit Ethernet port with 802.3af/at support allows powering the device with PoE switches. Two additional Gigabit Ethernet ports allow extending the network or connecting additional devices to the access point. Small form factor (15cm only), sleek design and unique mounting bracket makes the NFT 2ac ideal for indoor installations requiring cost-effective high-performance devices.

Indoor AP AC
Proximity

Proximity

Wilibox access points have an integrated mobile device detection feature. Any device within range can be logged with MAC address and date / time without any user interaction. The data is exported in real time and can be used to enhance the services of enterprise or managed service providers by importing it to their own application. An API is available upon request. There are several technology partners already using the functionality including Cloud4Wi and Socifi.

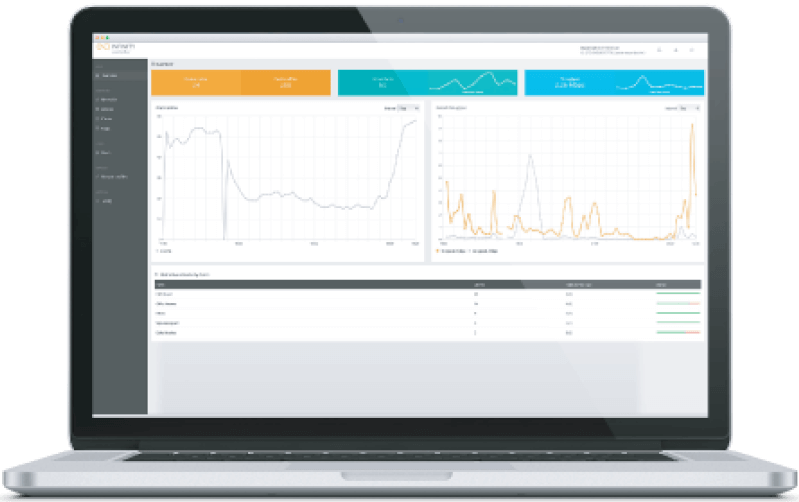

Axora Controller: 3 Ways to Manage Your Network

Laptop
Standalone

Standalone

Each device is configured via the user interface individually. This method is suitable for small networks not requiring centralized management and monitoring.

Integrated Controller

Integrated Controller

The master access point manages and monitors other devices on the same network. This controller-less architecture is suitable for small to medium size networks with up to 50 devices.

External Controller

External Controller

A local or cloud-based controller is used to manage and monitor the devices allowing deployment of large scale networks and management using a single system.

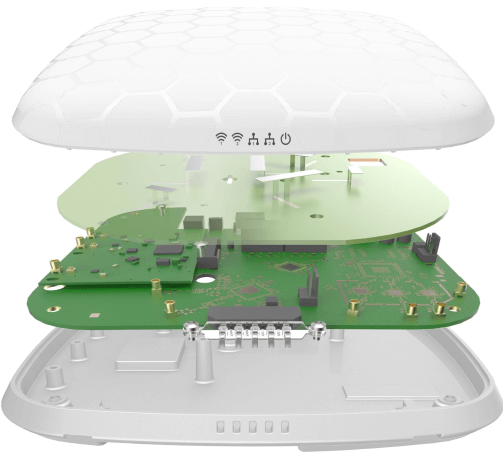

Specification

  • Dual-radio (2x2) design with 802.11ac support
  • Up to 1.167 Gbps data-rate
  • Up to 27 dBm radio output power
  • 3 dBi integrated omni-directional antennas
  • 3 Gigabit Ethernet ports (802.3af/at)
  • Compact design (15 mm only)
  • Flexible wall and ceiling mounting bracket
  • (Available with and without PoE adapter.)
Coverage radius:
  • 100 meters (328 ft)
Interfaces:
  • Ethernet 1: 1000 Base-T supporting 802.3 af/at with passive PoE (37 - 56V)
  • Ethernet 2: 1000 Base-T
  • Ethernet 3: 1000 Base-T
  • DC jack: 37 – 56V
  • Reset button
